Three Important Things to Know About Metal Stamping as you Design a Metal Part

1) Production rates vary depending on the tonnage size of the stamping press.

Each press has its own capabilities and limitations that establish the materials and operations that the stamping press can and cannot handle.

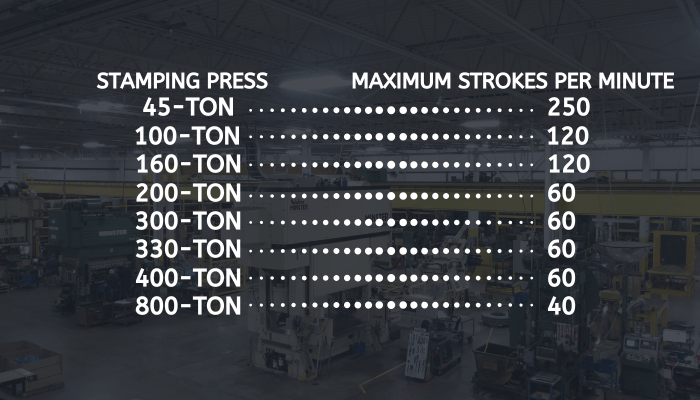

Maximum strokes per minute for metal stamping presses

GUIDE LIFT HEIGHT and FEED LENGTH are also key factors in establishing production rates in the stamping press.

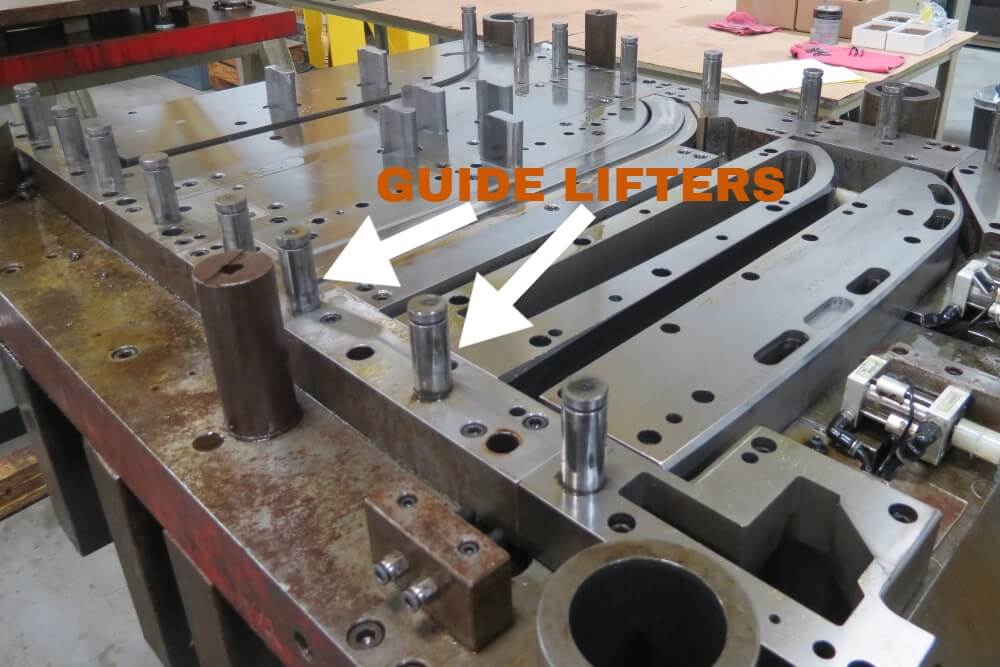

Guide lifters, identified in the image below, are a series of lifters that raise the die strip away from the die block so that it can move forward from station to station as the metal part is formed. An increased guide height slows down the stroke per minute.  The extent of forming that needs to be done on the metal part determines the required height of the guide lifters.

Die lifters on a production tooling die

The longer a feed length is the more time it takes to feed the material. To compensate, the press needs to run slower to allow the material to feed its programmed feed length. With a short feed length, the material feeds into location faster which allows you to run the press faster.

2) Metal coils have two different sides and understand why that is critical to your metal part.

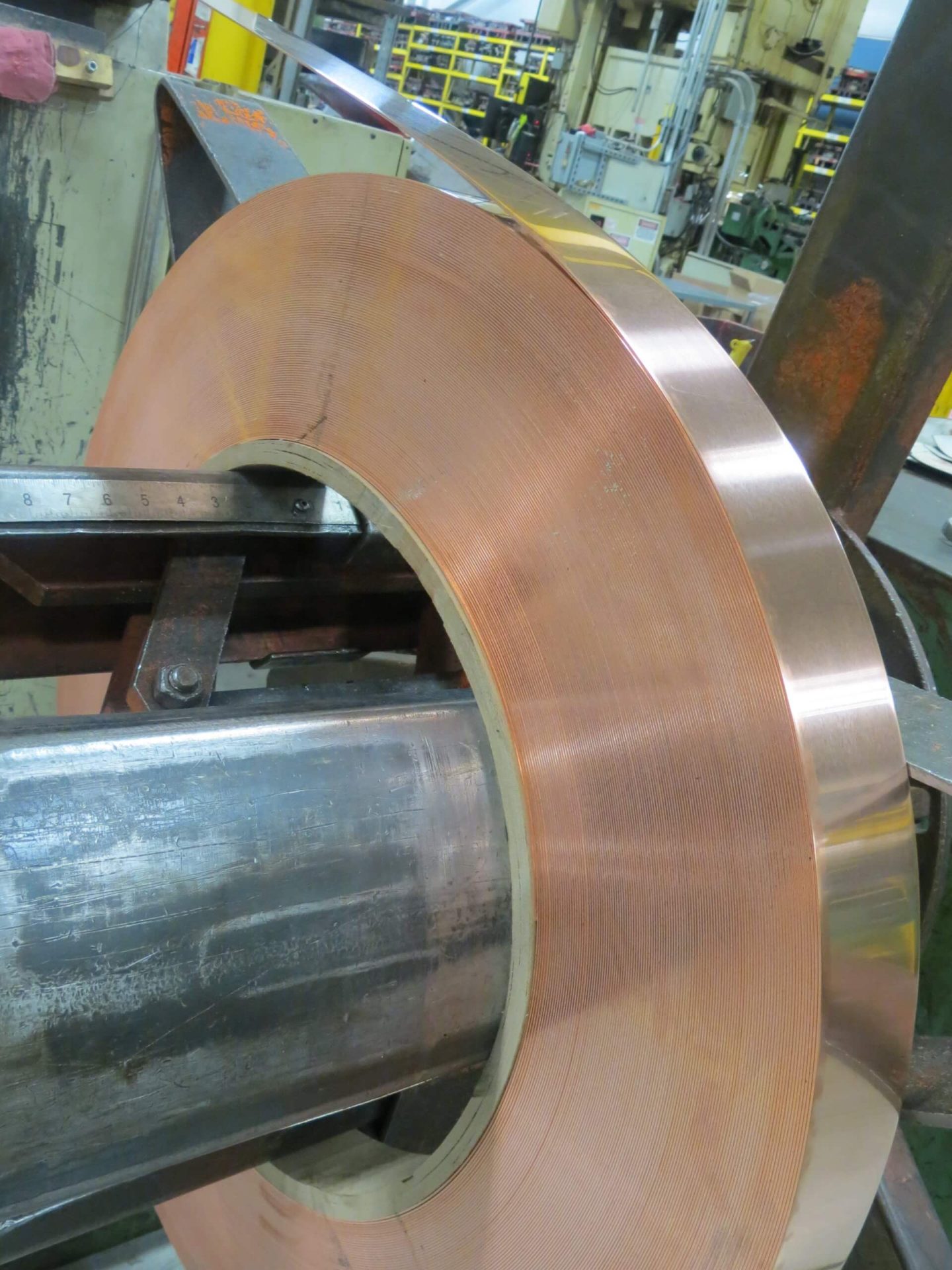

Copper metal coil for a metal stamping press The top side of the coil is cosmetic and the bottom side is non-cosmetic.  You need to consider how your tooling die will be using the top and bottom of the coil in the stamping press.  Determine the features of your metal part that will be visible to the end-user.

3) All metal stampings have varying degrees of burrs on the metal stamped edges.

A burr will be created each time a metal part is produced in the stamping press and needs to be cut from the tooling strip.

Burr on a metal stamped edge

The deburring process removes these unwanted burrs.  This process incurs extra costs and increases production time because it generally needs to be done by an outside supplier specializing in these operations.  During deburring, vibratory tumbling media utilizes flattening stations to pound the burr to an acceptable level.
